Technical Details

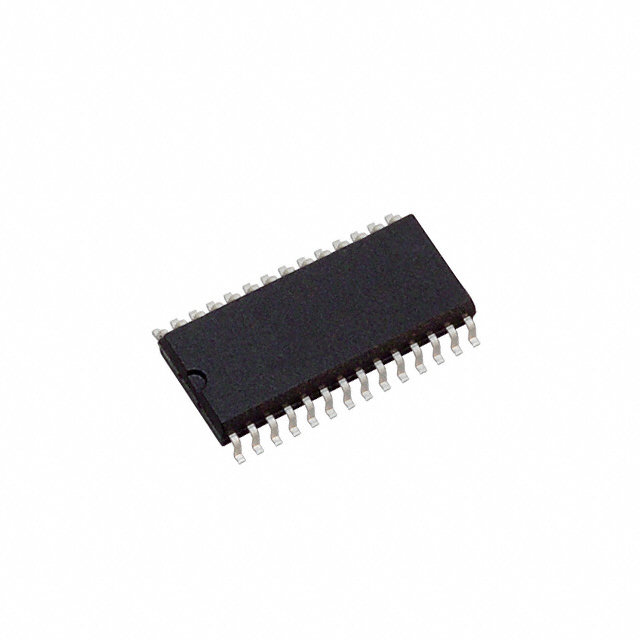

• Package / Case 28-TSSOP (0.173", 4.40mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 125°C
• On-State Resistance (Max) 170Ohm
• Supplier Device Package 28-TSSOP
• Voltage - Supply, Single (V+) 10V ~ 36V
• Voltage - Supply, Dual (V±) ±5V ~ 18V
• Charge Injection 0.31pC
• Crosstalk -100dB @ 1MHz
• Multiplexer/Demultiplexer Circuit 16:1
• Channel-to-Channel Matching (ΔRon) 6Ohm (Typ)
• Switch Time (Ton, Toff) (Max) 136ns, 78ns
• Channel Capacitance (CS(off), CD(off)) 2.1pF, 11.1pF
• Current - Leakage (IS(off)) (Max) 40pA
• Number of Circuits 1
